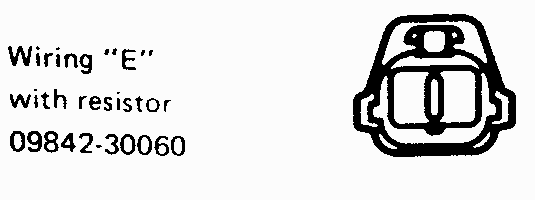

Connector type E

color		R	flow	test pressure	valve hole	engine
		[ohm]	cc/min	kg/cm^2
dark grey	1.7	200	2.9		cone (2)	3S-FE (-87.8)
beige		1.7	200	2.9		cone (2)	4Y-E (87.8-)
orange		1.7	200	2.9		cone (2)	22R-E (87.8-)
brown		1.7	200	2.9		cone (1)	3VZ-E
pink		2.7	200	2.9		ball (2)	4A-GE (EFI-D = with MAP sensor 87.5-)
yellow		2.7	295	2.55		ball (2)	7M-GE
reddish-orange	2.9	365	2.55		ball (2)	4A-GZE
black		2.9	430	2.55		ball (2)	7M-GTE, 3S-GTE (-89.8)
-		1.3	560	2.55		pintle (1)	1S-i (single point injection)

black		2.9	430	2.55		cone (2)	3S-GTE (89.8-) [side feed type!!!]

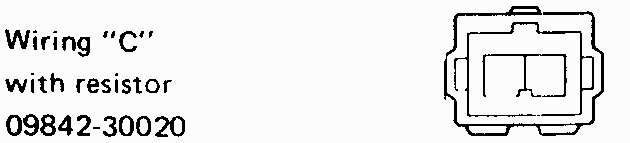

Connector type C

light green	2.4	145	2.55		pintle (1)	4K-E
green		2.4	145	2.55		pintle (1)	1G-E
dark grey	2.0	182	2.55		pintle (1)	4A-GE (EFI-D -87.5)
grey		2.4	182/195	2.55/2.9	pintle (1)	4M-E, 5M-E, 5M-GE, 6M-GE, 1S-E, 2S-E, 22R-E (-88.8), 3Y-E, 4Y-E, 1G-GE
blue		2.4	210	2.55		pintle (1)	4A-GE (EFI-L -87.8)
yellow-orange	1.7	250	2.55		pintle (1)	22R-TE (-85.8)
pink		1.6	295	2.55		pintle (1)	22R-TE (85.8-)

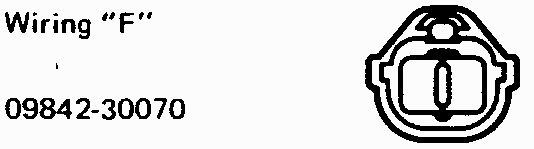

Connector type F

red / dark-blue	13.8	155	2.9		cone (2)	3E-E
violet		13.8	155	2.9		ball (1)	3E-E (-90.8), 2E-E
sky-blue	13.8	155	2.9		cone (2)	1G-FE
light-green	13.8	176	2.9		cone (2)	4A-FE (Corolla -89.8)
grey		13.8	176	2.9		cone (2)	4A-FE (89.8-)
dark-blue	13.8	200	2.9		cone (2)	3S-FE (87.8-)
orange blue	13.8	200	2.9		cone (2)	22R-E (88.8-)
brown		13.8	200	2.9		cone (1)	3VZ-FE
red		13.8	200	2.9		ball (2)	2VZ-FE
sky-blue	13.8	213	2.9		cone (1)	3F-E
beige		13.8	213	2.9		ball (2)	4A-GE (EFI-L 87.8-89.8)
yellow		13.8	213	2.9		cone (2)	5S-FE
green		13.8	250	2.9		cone (2)	4A-GE (EFI-D 89.8-)
violet		13.8	250	2.9		cone (2)	4A-GE (EFI-L 89.8-)
violet		13.8	251	2.9		cone (2)	1UZ-FE
green		13.8	295	2.55		cone (2)	3S-GE (87.8-89.8 with TWC)
pink		13.8	315	2.9		cone (2)	3S-GE (89.8-)
light-green	13.8	315	2.9		ball (2)	7M-GE (88.8-, US 89.8-)

light-green	13.8	228	2.9		cone (2)	2RZ-E [side feed type!!!]
violet		13.8	282	2.9		cone (2)	2TZ-FE [side feed type!!!]

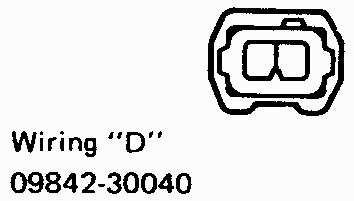

Connector type D

purple		13.8	155	2.9		pintle (1)	4A-FE (Carina II, lean burn)
brown		13.8	250	2.55		pintle (1)	3S-GE (all -89.8 except 87.7-89.8 with TWC)

Thanks to Mike Dowe (MDowe@wchat.on.ca) and Timo Raikkonen (traikkonen@c2000.fi) for the data.
